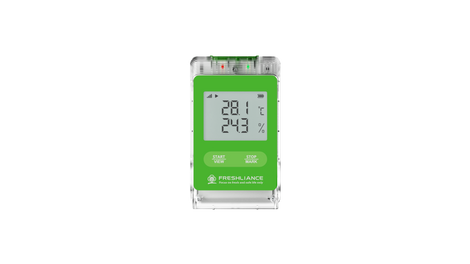

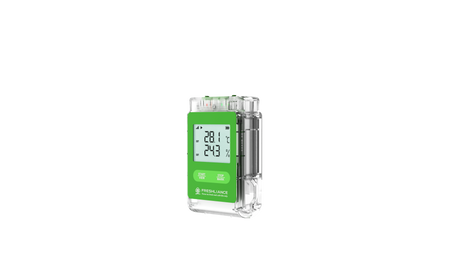

The Cool IQ Fresh Tracker 10 (Multi-Use) is a reusable, enterprise-grade 4G IoT environmental tracking system engineered for domestic logistics networks, automated distribution hubs, and strict medical cold rooms. Built for high-frequency, closed-loop transport, this advanced device continuously streams live environmental data directly to the Cool IQ Cloud network via a robust 4G network.
Featuring a rechargeable 4000mAh lithium battery with a rapid USB Type-C charging port, the Fresh Tracker 10 is designed to return to base, recharge, and redeploy instantly. Its multi-sensor array tracks temperature, relative humidity, live GPS location mapping, optional shock detection (impacts) and illumination (unauthorized entry), giving fleet and compliance managers 24/7 visibility with proactive SMS, email, or app breach alerts.
Note: Advanced onboard monitoring for Illumination (Tamper Detection) and Shock (Impact Audit) are available as optional factory configurations. Please contact the Cool IQ team directly to order these specialised builds.
Key Enterprise Features
-
Multi-Trip Reusable Lifecycle: Ruggedly built for continuous redeployment across your domestic freight loops, distribution hubs, or clinical storage networks.
-
Rechargeable Type-C Power: Equipped with a high-capacity 4000mAh lithium battery that fully recharges in just 2 hours via a standard Type-C interface.
-
4G Real-Time Telemetry: Continuous live-streaming of environmental updates straight to your cloud dashboard or mobile app.
-
Triple-Core Geolocation Mapping: Pinpoints inventory locations in real time using a precision combination of GPS, Wi-Fi, and LBS base station cellular tracking.
-
Tamper & Theft Alerts: Onboard optional Illumination Sensors instantly trigger security alerts if container doors, cargo trucks, or vaccine coolers are opened mid-transit.
-
G-Force Shock Audit: Optional Integrated impact sensors register drops, harsh handling, or vehicle accidents, identifying exactly when and where stock damage occurred.
-
Intelligent Flight Mode: Air-freight certified (RTCA/DO-160). Automatically suspends cellular transmission during flights while logging data internally, back-uploading the full journey logs upon landing.
-
Offline Fail-Safe Memory: Caches up to 30,000 readings locally if the cell signal drops in remote regions, automatically syncing once the network is recovered.
Ideal For
-
Cold Chain Logistics: End-to-end temperature auditing and real-time live location tracking for fleet operations and supply chain managers.
-
Food & Beverage Transport: Safeguarding dairy, fresh produce, meat, and seafood across high-frequency domestic transit loops.
-
Pharmaceuticals & Vaccines: Critical climate validation for clinical trials, pharmacies, hospitals, and high-value biological samples.
-
Warehousing & Distribution: Continuous ambient monitoring across distribution centers, inventory hubs, and commercial walk-in coolers.
-
Medical Facilities & Cold Rooms: Perfect for monitoring walk-in vaccine fridges and pharmacy storage rooms with zero manual data-pulling required.
-
Domestic Closed-Loop Logistics: High-frequency food, dairy, and pharmaceutical transport routes where the tracker returns to base with the delivery vehicle.
-
High-Value Asset Security: Electronics, high-end agricultural exports, or chemical transits requiring advanced shock and anti-tamper tracking.
How It Works
-
Ensure the device is charged, activate it, and secure it inside your transport environment or cold room.
-
Monitor live interactive mapping and climate data 24/7 on your mobile app or desktop dashboard.
-
Receive immediate, automated alerts if a temperature threshold, impact, or light event occurs.
-
Recover the device at the end of the run, plug it into a Type-C fast charger, and redeploy.
Specifications
|
Model |
Fresh Tracker 10S |
Fresh Tracker 10 |
Fresh Tracker-ETU |
|
Type of Use |
Single use |
Multi use |
|
|
Built-in Sensor |
-30℃~+70℃, ±0.5℃ F.S. |
||
|
0~100%RH, ±3%RH |
|||
|
Illumination Sensor |
Optional |
||
|
Shock Sensor |
Optional |
||
|
External Probe |
See the external probe list |
||
|
Flight Mode |
√ |
||
|
Positioning Technology |
LBS positioning, WiFi and GPS positioning optional |
||
|
Local Report |
USB Type-C interface to download full trip report |
||
|
Memory Capacity |
Max. 30,000 readings each probe |
||
|
Device Parameters |
User configurable Default: Alarm point: 2-8℃; Logging interval: 10min; Uploading interval: 60min |
||
|
Charging Port |
Type-C DC5V/2A |
||
|
Installation |
3M adhesive tape, hanging |
||
|
Dimensions |
101mm*60mm*34mm |
||
|
Weight |
200g (Main device) |
||
|
Temperature Units |
℃/℉ |
||
|
Battery Life |
Max. 120 days |
||
|
Operation System |
Web, APP |
||
|
Cellular Network |
4G (LTE_Cat1) with 2G (optional) |
||
|
Battery |
3.7V lithium battery (rechargeable), UN38.3 complied; Non-lithium battery optional |
||

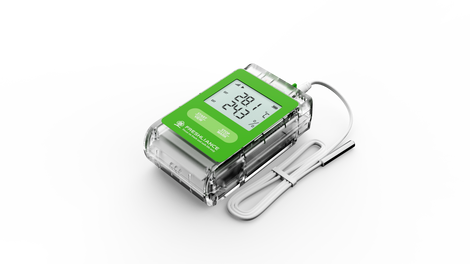

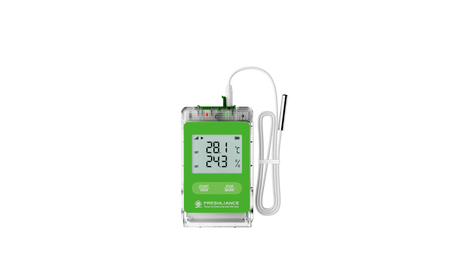

Externl Probe List:
|
Probe Type |
Measuring Range |
Measuring Accuracy |
|
Temperature Probe |
-30℃~+70℃ |
±0.5℃ (-30℃~+50℃) ±1.0℃(Other) |
|
-90℃~+200℃ |
±0.3℃ (-40℃~+100℃) ±0.5℃ (-80℃~-40℃; +100℃~+150℃) ±1.0℃ (Other) |
|
|
-196℃~+200℃ |
±0.5℃ (-100℃~+80℃) ±1.0℃ (Other) |
|
|
Temperature and Humidity Probe |
-40℃~+85℃ |
±0.5℃ F.S. |
|
0-100%RH |
±3%RH (25℃, 20%~90%RH) ±5%RH (Other) |
|
|
Standard cable length: 2m; Customizable length available: 5m, 10m, 15m or 20m. |
||
