Technical parameters

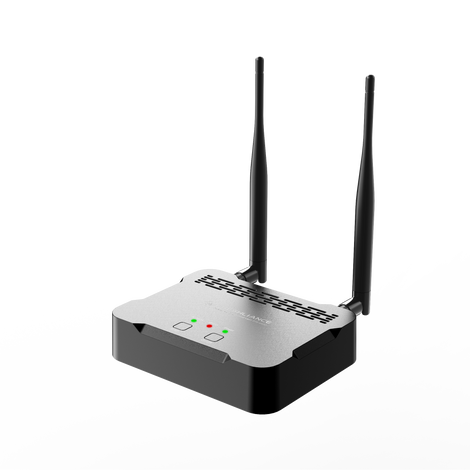

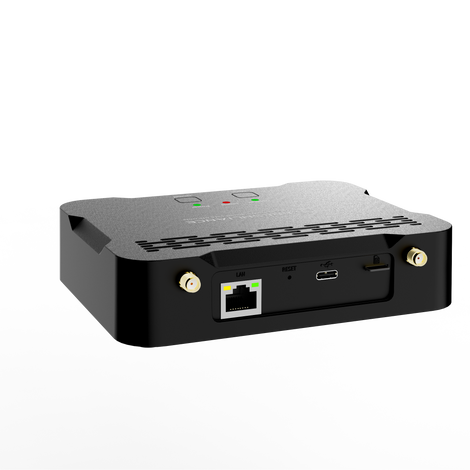

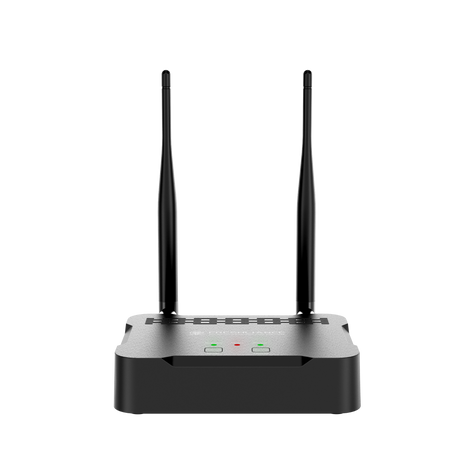

GAEA Series Gateway:
|
Gateway Model |
G1000-L |
|
Communication Network |
WiFi&LAN/Bluetooth |
|
Communication Range |
100m (Open air) |
|
Main Power Supply |
5V/2A, Type-C |
|
Backup Battery |
4000mAh/8000mAh, 3.7V (Rechargeable) |
|
Maximum Current |
≤ 900mA |
|
Maximum Connections |
100 sensors |
|
Working Temperature |
-30℃ ~ +70℃ |
BlueTag Series Sensors:
|
Model |
BlueTag T10 |
BlueTag T100 |
BlueTag TH100 |
BlueTag TH10R |
|
Communication Distance (Open Air) |
90m |
22m |
112m |
|
|
Temperature Range |
-30℃~+70℃ |
|||
|
Temperature Accuracy |
±0.5℃ F.S. |
±0.3℃ F.S. |
±0.5℃ F.S. |
|
|
Humidity Range |
× |
0~100%RH |
||
|
Humidity Accuracy |
× |
±3%RH (25℃, 0~90%RH); ±5%RH (Others) |
±3%RH |
|
|
External Probes |
× |
Max. 2 external probes optional |
||
|
Memory |
Max. 65,000 readings |
Max. 20,000 readings each probe |
||
|
Battery |
3.0V CR2032 lithium battery |
3.0V CR2032 lithium battery, replaceable |
3.7V 1000Ah lithium battery, rechargeable |
|
|
Dimensions |
48mm*31mm*5mm |
31.8mm*31.8mm*10.5mm |
83mm*68mm*20.5mm |
|
|
Weight |
7.8g |
10g |
80g (Main device) |
|
|
Installations |
3M adhesive tape |
3M adhesive tape, wall mounting |
3M adhesive tape, wall mounting, magnetic suction |
|
|
Start Delay |
0min~72h |
|||
|
Logging Interval |
1min~99min |
|||
|
Alarms |
Max. 6 alarm points |
|||
|
Temperature Units |
℃, ℉ |
|||
|
Report Format |
PDF, CSV |
|||
|
Connection |
Bluetooth 5.2 |
|||
External Probe List:
|
Probe Type |
Measuring Range |
Measuring Accuracy |
|
Temperature Probe |
-30℃~+70℃ |
±0.5℃ (-30℃~+50℃) ±1.0℃(Others) |
|
-90℃~+200℃ |
±0.3℃ (-40℃~+100℃) ±0.5℃ (-80℃~-40℃; +100℃~+150℃) ±1.0℃ (Others) |
|
|
Temperature and Humidity Probe |
-40℃~+85℃ |
±0.5℃ F.S. |
|
0-100%RH |
±3%RH (25℃, 20%~90%RH) ±5%RH (Others) |
|
|
Standard cable length: 2m; Customizable length available: 5m, 10m, 15m or 20m. |
||
